MG Suit Menu(Tap to display menu)
EMC Countermeasure Products
Various Electromagnetic Protective Clothing
"MG Suit" electromagnetic wave protection suit for working in strong electromagnetic environments
Data on reduced human exposure when worn is available
made in Japan

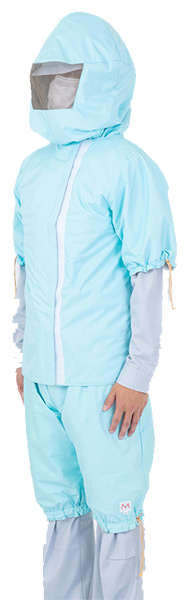

Electromagnetic protective clothing for working in a strong electromagnetic environment
MG Suit
Reduces human exposure when working in an environment where strong electromagnetic waves (100 kHz or more) are generated
The "MG Suit" is an electromagnetic wave protective garment designed and manufactured to reduce exposure of the head, chest, abdomen, and genitals when working in an environment where electromagnetic waves are generated.

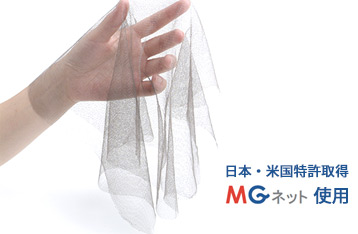

It uses a honeycomb-shaped electromagnetic wave blocking mesh called "MG Net," which is highly durable and does not deteriorate in performance even when folded or washed. In addition, it uses antibacterial and antibacterial materials and is compatible with alcohol disinfection and low-temperature sterilization, strengthening infection control measures.
※The MG Suit is developed based on the MRI Protector, an electromagnetic wave protective suit approved as a medical device. In addition, we have been requested by the Ministry of Defense to develop and provide electromagnetic wave protection suits for jamming radio waves.

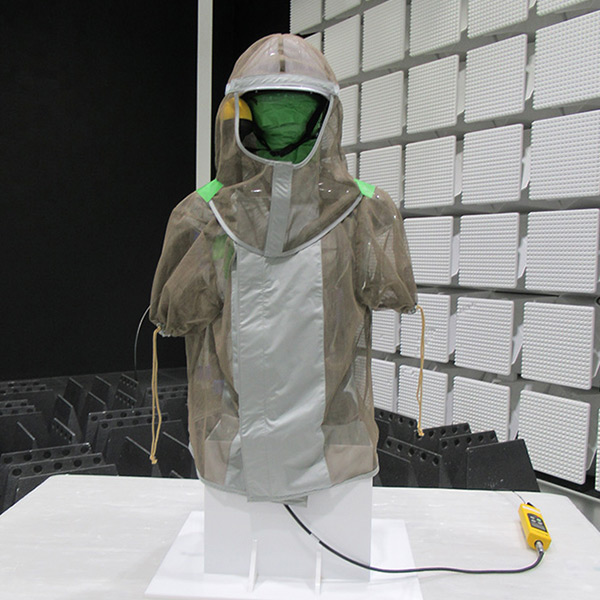

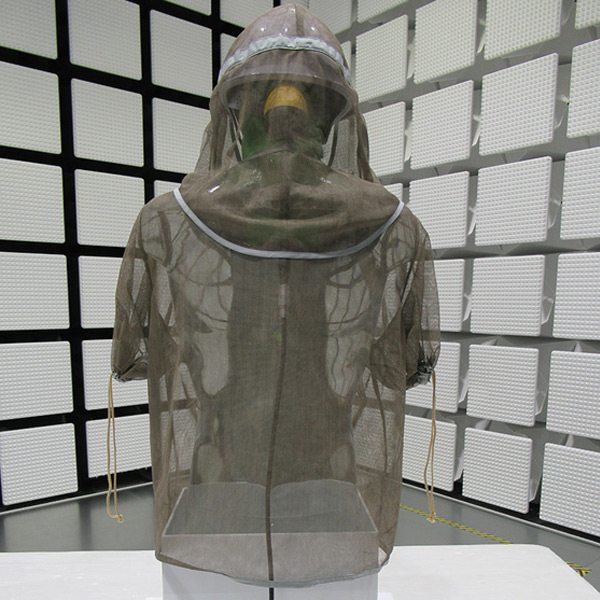

- Adopted by the Ministry of Defense and the Ground Self-Defense Force Equipment Test Unit as jamming protection clothing
-
【Purpose of introduction】
In conflict zones, combat vehicles drive while transmitting high-power jamming radio waves. Since reconnaissance personnel have their upper bodies exposed on the vehicle, they are exposed to electromagnetic waves from the rear that exceed the standard value for human exposure (electric field strength 61.4V/m, magnetic field strength 0.163-0.287A/m). Therefore, electromagnetic wave protective clothing that can reduce human exposure to 30% or less of the standard value has been introduced.
【Reasons for adoption】
- ・Conducted electromagnetic wave human exposure protection tests and met the required performance (no other companies, including overseas, had done this).
- ・Washable (other companies' products cannot be washed)
- ・Highly durable and performance does not deteriorate even after repeated folding
- ・Easy to put on and take off, and reduces the physical burden on workers when wearing them
- ・To ensure visibility, the face area must be open, and performance must be below the guidelines.
- ・This is a mesh-type protective suit that can be worn in hot climates such as the Middle East.
For working in environments where strong electromagnetic waves are generated
●It is worn when conducting immunity tests on automobiles, nursing robots, etc., or when working in fields where strong electromagnetic waves are generated, to reduce human exposure to electromagnetic waves above 100 kHz.
※ The International Commission on Non-Ionizing Radiation Protection (ICNIRP) has defined guidelines for "public exposure (0.08W/kg)" and "occupational exposure (0.4W/kg)," and in the workplace, the exposure limit is 0.05W/kg for all body parts except the limbs.Head, chest, abdomen and genital areas should be exposed below occupational levelsWe can say that.※The guideline for the limbs is twice that value (0.8W/kg).
Wearing an MG suit reduces human exposure to electromagnetic waves by up to 98%. (Test data using a human body phantom is available.)
Features of the "MG Suit" electromagnetic wave protection suit for work
- １ Reduces exposure to electromagnetic waves to the human body (data on reduced exposure to the human body when worn is available)
- ２ It uses honeycomb-shaped electromagnetic wave blocking mesh "MG Net" and is highly durable、Performance will not deteriorate even after repeated washing and folding（When ordinary shielding mesh or sheet materials are folded, the metal parts peel off or break, causing a deterioration in performance.）
- ３ It is easy to put on and take off, lightweight, breathable, water-repellent and comfortable.
- ４ Alcohol disinfection is possible, and dry cleaning is also possible.※Other companies' products cannot be washed
- ５ Lining is made of antibacterial and antimicrobial material
We can meet your needs such as:
- ・When conducting immunity tests on automobiles, nursing robots, etc.
- ・For working at radar sites or on equipment or facilities that generate strong electromagnetic waves
- ・I want it to be durable, washable, and suitable for infectious disease prevention.
- ・We want to reduce the physical burden on workers and make it easier to put on and take off.
- ・We want reliable data on reducing human exposure and quality assurance
size
| Vest (size adjustable with Velcro) | ||
|---|---|---|
| Free | Waist: 75cm-110cm Arm: up to 43cm Length: 60cm | weight：280g |
| Large | Waist: 110cm-135cm Arm: 43-58cm Length: 65cm | weight：300g |
| Pants (adjust the size of the inner belt with a stopper) | ||
|---|---|---|
| Free | Waist: ~95cm Thigh: ~55cm Length: 35cm | weight：230g |
| Large | Waist: 95-135cm Thigh: 55-75cm Length: 40cm | weight：300g |
| Hood (use after wearing a helmet or hat) | ||
|---|---|---|
| Free | Hood: 22cm Head depth: 23cm Length: 40cm Hem width: 33cm | weight：100g |
material
| Electromagnetic shielding inner material (2-layer MG net) | 100% pure silver fiber (nylon base material coated with pure silver) Electromagnetic wave shielding performance (32-40dB-KEC method) |
|---|---|
| Outer material | Nylon (waterproof/breathable)100% |
| lining | Polyester (antibacterial and antibacterial)100% |
| Velcro | nylon 100% |
| Tight laces | Rayon 100% |
| D-ring | nylon 100% |
color
| Classification | color |
|---|---|
| Base Color | blue |
MG Suits Price List (excluding tax)
| Part number | Product name | Sales price (excluding tax) |
|---|---|---|
| EMCMGS-F | MG Suit 3-piece set [Free size] Vest, pants, hood |
300,000yen |
| EMCMGS-L | MG Suit 3-piece set [Large size] Vest, pants, hood |
330,000yen |
Purchase Information
▼Telephone enquiries▼
TEL 0725-53-3270
※Please be careful not to enter the wrong number.
●Reception hours: Monday to Friday 9:00 to 17:00 (excluding New Year's holidays and public holidays)
