MRI Protector Menu(Tap to display menu)
Medical Devices and Hygiene Products
MRI Protector
General medical equipment Radiation protection equipment
Patent number 6799351
Protective clothing for protecting body parts from unnecessary exposure to electromagnetic waves during MRI examinations
made in Japan
MRI scans irradiate electromagnetic waves (RF pulses), but these are of a strength that is not permitted for any purpose other than medical purposes.※。
During the examination, body parts other than the affected area are also exposed to electromagnetic waves. In addition, exposure to electromagnetic waves can cause heat generation and discoloration of non-magnetic metal implants (stents, sternum wires, etc.), metal fixation devices such as rings and wrists, and metal components contained in tattoos and eyebrow ink, as well as burns due to the appearance of high-frequency loops formed in body parts.
By reducing patients' exposure to electromagnetic waves, this product minimizes the potential health risks to patients and the various risks mentioned above due to electromagnetic exposure, allowing not only patients but also the technicians in charge of the examination to perform the examination with greater peace of mind.
（This is especially recommended for patients who are rushed to the hospital and for whom it is difficult to obtain consent forms.）
※The International Commission on Non-Ionizing Radiation Protection (ICNIRP) defines "public exposure," "occupational exposure," and "controlled exposure." MRI electromagnetic wave exposure is below the upper limit of "controlled exposure" (whole-body average SAR value of 4 W/kg), but is greater than the limits for "public exposure (0.08 W/kg)" and "occupational exposure (0.4 W/kg)."
Features of MRI Protector
- The outer material is waterproof and breathable nylon fabric, and the lining is polyester fabric with antibacterial, antibacterial and deodorizing properties. It is also suitable for alcohol disinfection and low-temperature sterilization (gas sterilization, etc.) and can be dry-cleaned, providing thorough measures against infectious diseases.

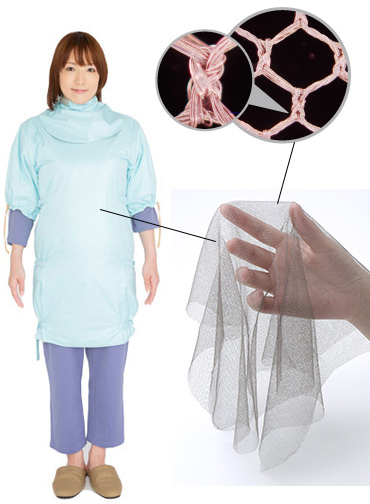

- The non-magnetic silver fiber material MGnet is inserted between the outer and inner linings as an electromagnetic wave shielding material.
- We offer a variety of MRI protectors to suit the parts of the body you wish to shield from electromagnetic waves.
Product lineup and prices
- Types of MRI protectors and clinical examples
-
In MRI scans, there is a risk of heat generation and discoloration due to metals in implanted medical instruments, rings, nails, and metal components in dyes such as tattoos. In addition, when contact with the gantry or a high-frequency loop is formed by a cable or the body, there have been cases of burns caused by induced currents when electromagnetic waves (magnetic flux) pass through the loop. If the tattoo pattern is a loop, the risk is even higher, so caution is required.
This product has the ability to reduce the amount of electromagnetic wave exposure inside the body by more than 80%, and further reduce the amount of electromagnetic waves (magnetic flux) passing through the loop by approximately one-hundredth.
Between October 2017 and August 2020, there have been over 5,000 clinical cases like the one below in medical settings, with only one abnormality reported, involving incorrect wearing of the mask.
Model：MPVT-01（Best）
JMDN：38356000（Radiation protection chest apron）
Medical Device Registration number ：27B3X00308MPVT01
＜Clinical Examples＞
Used for head examinations on patients with tattoos, mechanical aortic valves, bypass grafts, stents, sternal wires, or ports
Model：MPFC-01（Fitted Coat）
JMDN：38355000（Radiation protection apron）
Medical Device Registration number ：27B3X00308MPFC01
＜Clinical Examples＞
Used for head examinations on patients with tattoos, mechanical aortic valves, bypass grafts, stents, sternal wires, ports, and abdominal stents
※ Reduces exposure to electromagnetic waves on the body except for the head and limbs
Model：MPPT-01（pants）
JMDN：38367000（Radiation protection gonad protector）
Medical Device Registration number ： 27B3X00308MPTC01
＜Clinical Examples＞
Used for head and chest examinations on patients with tattoos, lower abdominal artificial hip joints, and abdominal stents
Used during high frequency hyperthermia treatment
※ Reduces exposure of reproductive organs (testes, uterus, ovaries) to electromagnetic fields
Model：MPRS-01（Roll sheetＡ）
JMDN：38357000（Radiation protection blanket）
Medical Device Registration number ： 27B3X00308MPRS01
＜Clinical Examples＞
For head and abdominal examinations, those with tattoos, artificial knee joints (TKR), and metal wrist braces
※ Used to suppress aliasing artifacts caused by RF reflections and shielding effects
Model：MPRS-02（Roll sheetＢ）
JMDN：38357000（Radiation protection blanket）
Medical Device Registration number ：27B3X00308MPRS02
＜Clinical Examples＞
Used for lower abdominal examinations on patients with tattoos, stents, or sternal wires
Used for chest examinations on people with tattoos and hip replacements (THR)
※ Use on chest or abdomen as desired.
Model：MPMT-01（Mittens）
JMDN：38365000（Radiation Protection Mittens）
Medical Device Registration number ： 27B3X00308MPMT01
＜Clinical Examples＞
For use with people who wear metal finger restraints, finger rings, nails, or balloon switches during head and abdominal examinations
※ When gripping the balloon switch, loops may appear on the fingers, posing a risk of burns.
※ Used to suppress aliasing artifacts caused by RF reflections and shielding effects
Model：MPNG-01（Neck guard）
JMDN：38358000（Radiation protection collar）
Medical Device Registration number ：27B3X00308MPNG01
＜Clinical Examples＞
For use with tattoos and cervical stents during breast examinations (may be used in conjunction with a vest or fitted coat)
MRI Protector「Monitor Campaign」
By participating in the monitor survey, you can purchase the following products at the monitor price.
Performance test data
MRI Protector has undergone various performance tests, such as evaluation of the shielding characteristics of electromagnetic protective clothing and temperature rise due to exposure to high-power electromagnetic waves, proving its high performance and safety.
MRI Protector Clinical Use
● Frequency and status of clinical use of each MRI Protector product
Between October 2017 and June 2019, this product was used during 238 MRI examinations with 1.5T MRIs and 563 with 3.0T MRIs. There were zero reports of abnormalities, except for one case where the specified wearing method was not followed.
| MRI Protector Types | Number and Percentage of Usage |
|---|---|
| Part number MPVT01 Vest & neck (for chest and neck) Mainly used for patients with stents and sternum wires during head examinations |
413 Results (46.93%) |
| Part number MPRS01 Roll sheet A (For arms and legs) Mainly used for head and abdominal examinations for patients with total hip replacement (THR), total knee replacement (TKR), metal wrist braces, and ring wearers (also useful for folding artifacts) |
252 Results (28.64%) |
| Part number MPMT01 Mittens (for hands, feet and fingers) Mainly used for head and abdominal examinations for those wearing metal finger restraints, rings, or nails |
48 Results (5.45%) |
| Part number MPPT01 Pants (for lower legs) Mainly used for head examinations of patients with total hip replacement (THR) and abdominal stents |
157 Results (17.84%) |
| Part number MPNG Neck guard (for neck) for single use Used for patients with cervical stents during breast examinations |
10 Results (1.14%) |
