"MG Military Suit" - electromagnetic wave protection suit for jamming
Data on reduced human exposure when worn is available
made in Japan
Electromagnetic wave protection suit for jamming
MG Military Suit
Reducing the powerful jamming signals emitted by combat vehicles to below the human exposure guidelines
Combat vehicles (tanks, armored vehicles, etc.) are equipped with a function to prevent mines and drone attacks using radio waves by emitting powerful jamming radio waves. The "MG Military Suit" is an electromagnetic wave protective suit designed and manufactured to reduce human exposure to the head, chest, abdomen, and genitals during vehicle-mounted reconnaissance missions in combat vehicles that generate powerful electromagnetic waves.

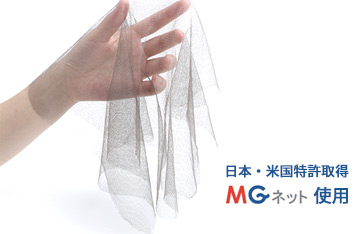

It uses a honeycomb-shaped electromagnetic wave blocking mesh called "MG Net," which is highly durable and does not lose its performance even when folded or washed.
※MG Military Suit is developed based on the MRI Protector, an electromagnetic wave protective suit for MRI that has been approved as a medical device. MG Military Suit was requested by the Ministry of Defense to develop electromagnetic wave protective suit for jamming radio waves, and it has been adopted as equipment.
- Adopted by the Ministry of Defense and the Ground Self-Defense Forces' Equipment Test Unit as electromagnetic wave protection clothing to counter jamming signals
-
【Purpose of introduction】
In conflict zones, combat vehicles drive while transmitting high-power jamming radio waves. Since reconnaissance personnel have their upper bodies exposed on the vehicle, they are exposed to electromagnetic waves from the rear that exceed the standard value for human exposure (electric field strength 61.4V/m, magnetic field strength 0.163-0.287A/m). Therefore, electromagnetic wave protective clothing that can reduce human exposure to less than 50% of the standard value has been introduced.
【Reasons for adoption】
- ・Conducted electromagnetic wave human exposure protection tests and met the required performance (no other companies, including overseas, had done this).
- ・Washable (other companies' products cannot be washed)
- ・Highly durable and performance does not deteriorate even after repeated folding
- ・Easy to put on and take off, and reduces the physical burden on workers when wearing them
- ・To ensure visibility, the face area must be open, and performance must be below the guidelines.
- ・This is a mesh-type protective suit that can be worn in hot climates such as the Middle East.
For missions in environments where strong electromagnetic waves are generated
●The MG Military Suit reduces human exposure to electromagnetic waves above 100kHz.
* The International Commission on Non-Ionizing Radiation Protection (ICNIRP) has defined guidelines for "public exposure (0.08W/kg)" and "occupational exposure (0.4W/kg)." It is desirable that in the working environment, exposure to thehead, chest, abdomen, and genitals, excluding the limbs※ be below the occupational level.
※The guideline for the limbs is twice that value (0.8W/kg).

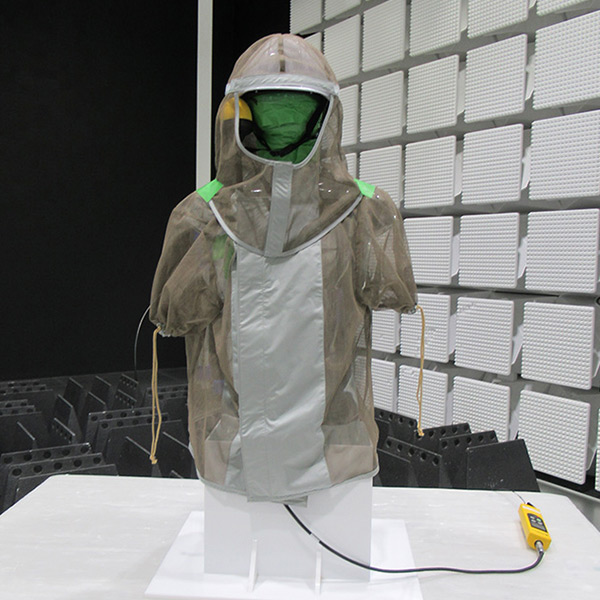

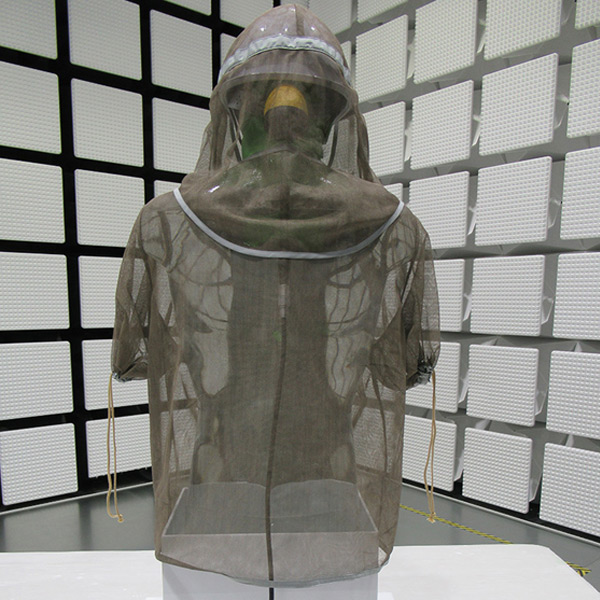

Wearing the MG military suit can reduce human exposure to less than half of the guidelines. (Test data using an anthropomorphic phantom is available.)
Features of the electromagnetic wave protection suit "MG Military Suit" for jamming radio wave countermeasures
- １ Reduce human exposure to electromagnetic waves to less than 50% of the guidelines
- ２ It uses a honeycomb-shaped electromagnetic wave blocking mesh called "MG Net," which is highly durable and does not deteriorate even after repeated washing or folding (normal shielding mesh and sheet materials will deteriorate in performance when folded, as the metal parts will peel off or break).
- ３ It is easy to put on and take off, lightweight, breathable, water-repellent and comfortable.
- ４ Can be disinfected with alcohol and dry cleaned. ※Products from other companies cannot be washed.
- ５ In hot areas, wearing it outside of combat clothing will help keep you cool by dissipating heat.
- ６ In cold regions, wearing it under combat uniforms provides heat retention and keeps you warm.
Size (custom sizes available)

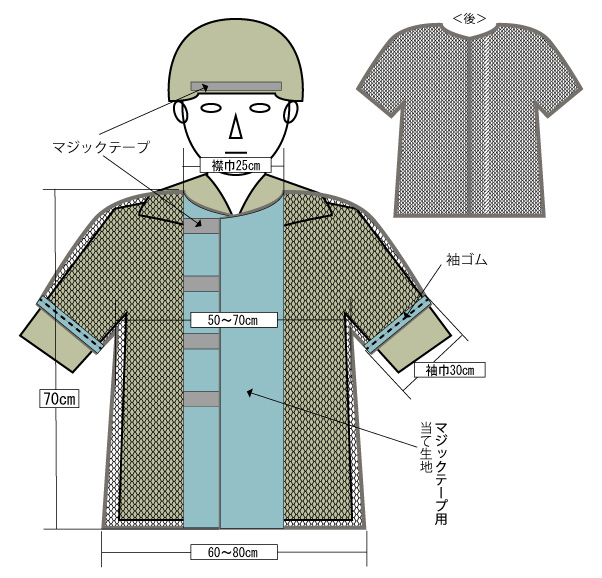

| Jacket (size adjustable with Velcro) | ||
|---|---|---|
| Free | Waist circumference：75cm～110cm Arm circumference：～50cm Length：70cm | weight：200g |
| Large | Waist circumference：110cm～135cm Arm circumference：～60cm Length：75cm | weight：250g |
| Pants (adjust the size of the inner belt with a stopper) | ||
|---|---|---|
| Free | Waist circumference：～95cm Thigh circumference：～55cm Length：35cm | weight：200g |
| Large | Waist circumference：95～135cm Thigh circumference：55～75cm Length：40cm | weight：250g |

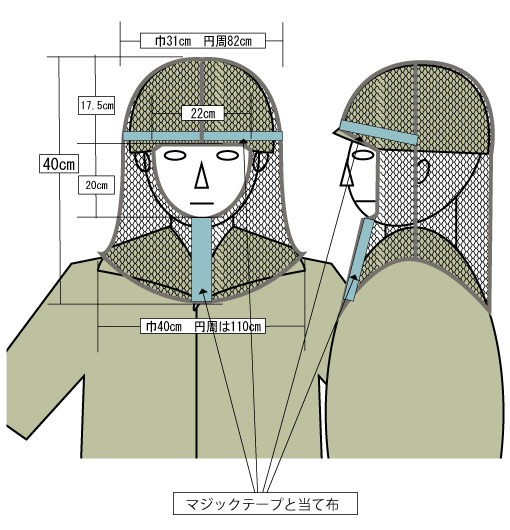

| Hood (use after wearing a helmet or hat) | ||
|---|---|---|
| Free | Hood: 31cm Head depth: 31cm Length: 40cm Hem width: 40cm | weight：80g |
material
| Electromagnetic shielding material (MG net 2 layers) | 100% pure silver fiber (nylon base coated with pure silver) Electromagnetic wave shielding performance (32-40dB-KEC method) |
|---|---|
| lining | polyester100% |
| Velcro | nylon100% |
| Tight laces | Rayon100% |
color
| Classification | color |
|---|---|
| Base Color | gray |
Information on maintenance products
MG Conductive Anti-rust Spray330ml
Features
Maintenance supplies to maintain performance. Conductive anti-rust coating prevents deterioration of silver fibers. Contains tin for electrical conductivity.
・Compatible with EMCsheet, electromagnetic shielding bag, EMCbox, EMCtent, EMC simple room, MG military suit
component
| Stock solution ingredients | CAS Number |
|---|---|
| Acetate esters | 141-78-6 |
| Isopropanol | 67-63-0 |
| Ethylene glycol monobutyl ether | 111-76-2 |
| Acrylic resin solution | 104609-24-7 |
| Conductive material | Tin |
How to use
Make sure the area is well ventilated, check the direction of the nozzle, hold the can 20-30cm away, shake the can vigorously about 10 times, and spray thinly and evenly over the entire surface. You can use the same method for up to 4 layers, but it is more efficient to spray in layers. Allow to dry indoors for about 1-2 hours after spraying.
Spray time: 1 can can spray for 270-300 seconds
The spray time varies depending on the area as follows:
20cm×20cm（400c㎡）Spray Time1～1.5second
30cm×30cm（900c㎡）Spray time: 2 to 3 seconds
40cm×40cm（1600c㎡）Spray Time4～5second
50cm×50cm（2500c㎡）Spray Time6～7second
Frequency of use
For shielding bags and sheets that are touched daily, spray once every three months. For tents and shielding boxes that are not touched, spray after the first year and then use once within the next two years; the product's performance will hardly deteriorate even after five years or more.
※Spray frequency varies depending on usage.
